It is mainly designed to be used in industrial refrigeration, impact doors, cold storage room doors, negative cabinets, and similar areas.

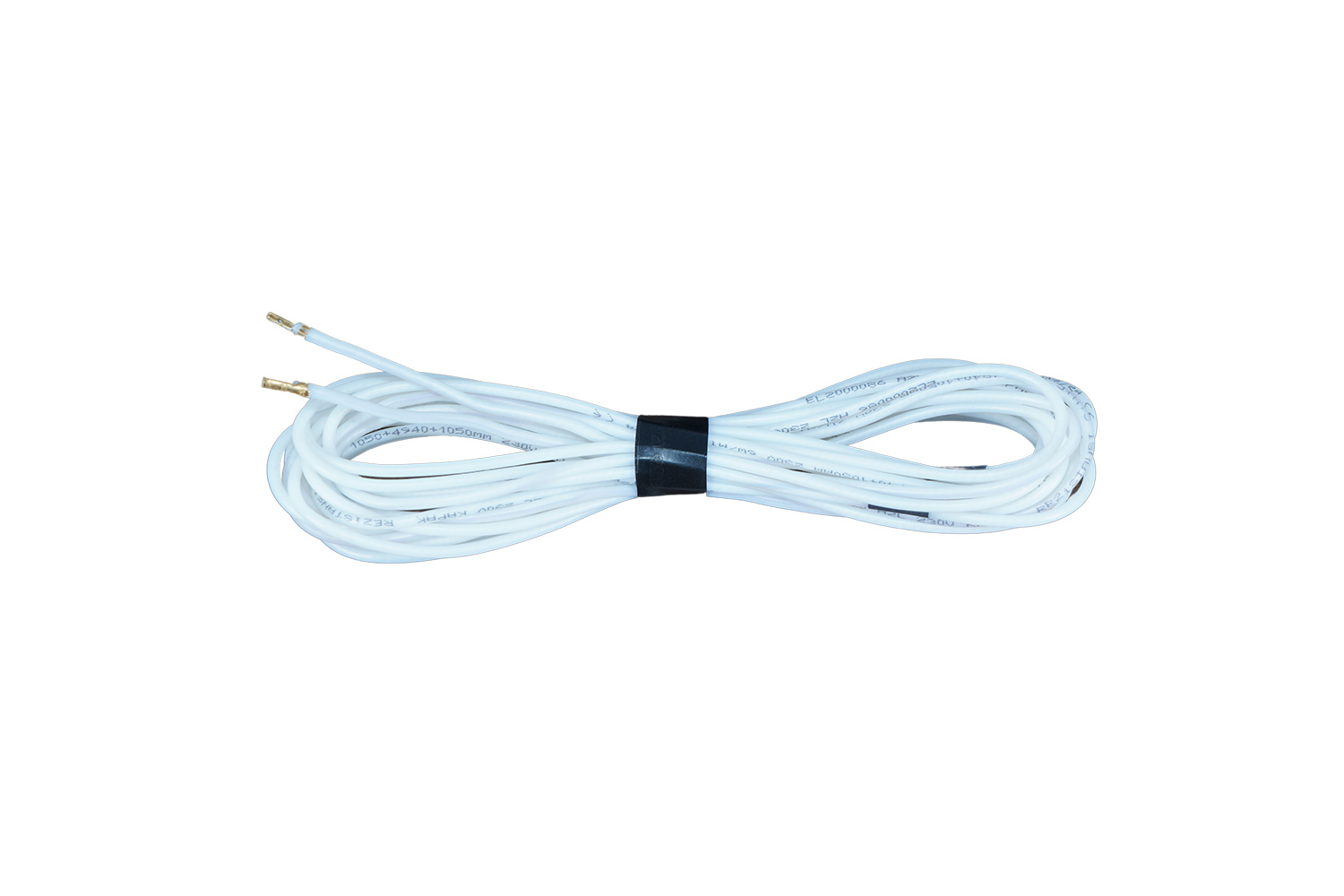

Non-Braided Door Heaters (With Internal Cold Zone, 5mm)
Non-Braided Door Heaters (With Internal Cold Zone, 5mm)
Dinçel Door Heaters are used to prevent fogging and moisture buildup inside deep freezer profiles. They are wrapped around the fans in industrial cooling units to melt the radiator. They are used against all types of freezing in commercial refrigerators, air conditioners, and aquariums.
We recommend using a control device to ensure the long lifespan of these heaters.
Note: The most commonly used power rating is 30 W/m for frozen environments. Additionally, we suggest using a range of 15 W/m for cooling cabinets.
-
Usage Areas
-
Technical Specifications
Produced at the desired power according to our customers' requests.
30W/MT is used according to world standards.
Each product has a 20cm cold zone. An additional 10cm is added to each end.
It is within the cold zone.
GLASS FIBER DIAMETER (MM) 1.1 HEATING WIRE CHROME-NICKEL OR COPPER-NICKEL HEATING WIRE DIAMETER (MM) 0.05-0.08 CABLE DIAMETER (MM) 2-6 COATING SILICONE ELASTOMER CABLE TEMPERATURE RESISTANCE -60 - 180 °C MAX OHM (Ω/M) 5000 POWER (W) 30 MAXIMUM VOLTAGE 600 TOLERANCE VALUES RESISTANCE +/-10%
LENGTH +/- 1%
DIAMETER +/-0.2mm -
